ARC Air & Road Conditions System
Our wireless or wired air and road condition sensor and remote in-cab display captures humidity, road and air temperatures. The in-cab display shares live readings from the sensor. It is fully compatible with FORCE America controllers and PreCise MRM GPS devices for data collection.

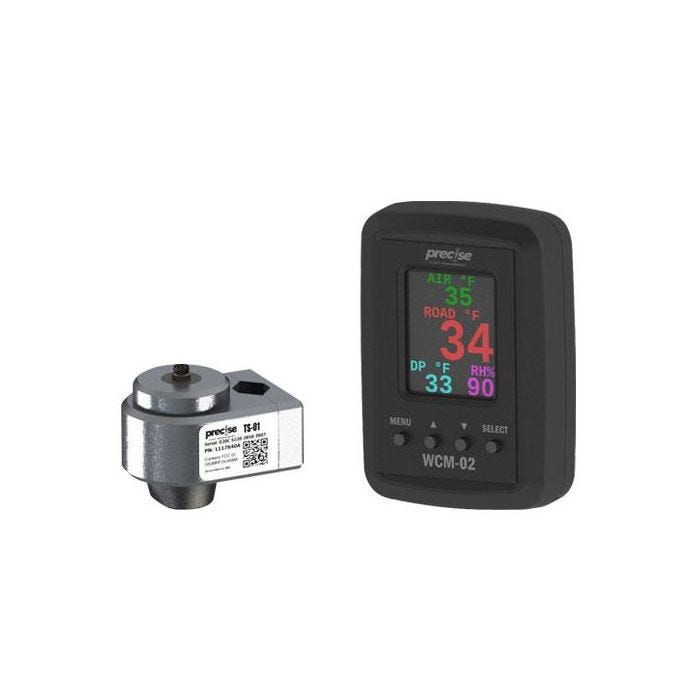

Temp Sensor
Our new vehicle mounted temperature sensor and remote in-cab display captures road, humidity, and air temperatures.
Temp Display
The in-cab display shares live readings from the wireless sensor. It is fully compatible with FORCE America controllers and PreCise MRM GPS devices for data collection.
Proudly voted 2016 Best New Product at APWA Public Works Expo!
Temp Sensor
• Air Temp: ±0.5°C (±1.0°F) typical
• Relative Humidity: ±6% typical
• Road Temp: ±1.0°C (±2.0°F) typical
• Emissivity: calibrated to 0.95
• Field of View: 10°
• Operating Temp: -40°C to 85°C
(-40°F to 185°F)
• Radio Communications: IEEE 802.15.4
(2.4GHz DSSS)
• Range: 10m (33ft) typical
• Power: (1) 1.5V alkaline D Cell
Temp Display
• Sunlight readable, full color display
• Backlight: User selectable and auto-dimming
• Display Units: °C or °F, User selectable
• Update Frequency: 1 to 60 seconds,
User selectable
• Power: 12V-24V vehicle power
• Serial Outputs: RS-232, SAE J-1708, CAN
Sensor Combinations
Wired – Includes wired sensor, display and cable.
Wireless – Includes wireless sensor, display and cable.
